IMI Defense Z-Shape Carry Handle Rail Mount for M16A1 / A2

Name: IMI Defense Z-Shape Carry Handle Rail Mount for M16A1 / A2 - Stitches Worldwide
SKU: 70163
Price: 675 USD
Availability: InStock

$675

The IMI Defense Z-shape rail mount lets you add optics to an M16A1 or A2 carry handle while keeping your iron sights usable. It is machined from aircraft-grade aluminum with a self-locking thumbnut for a repeatable zero, and it fits 1913 Picatinny and Weaver optics.

Availability: In stock

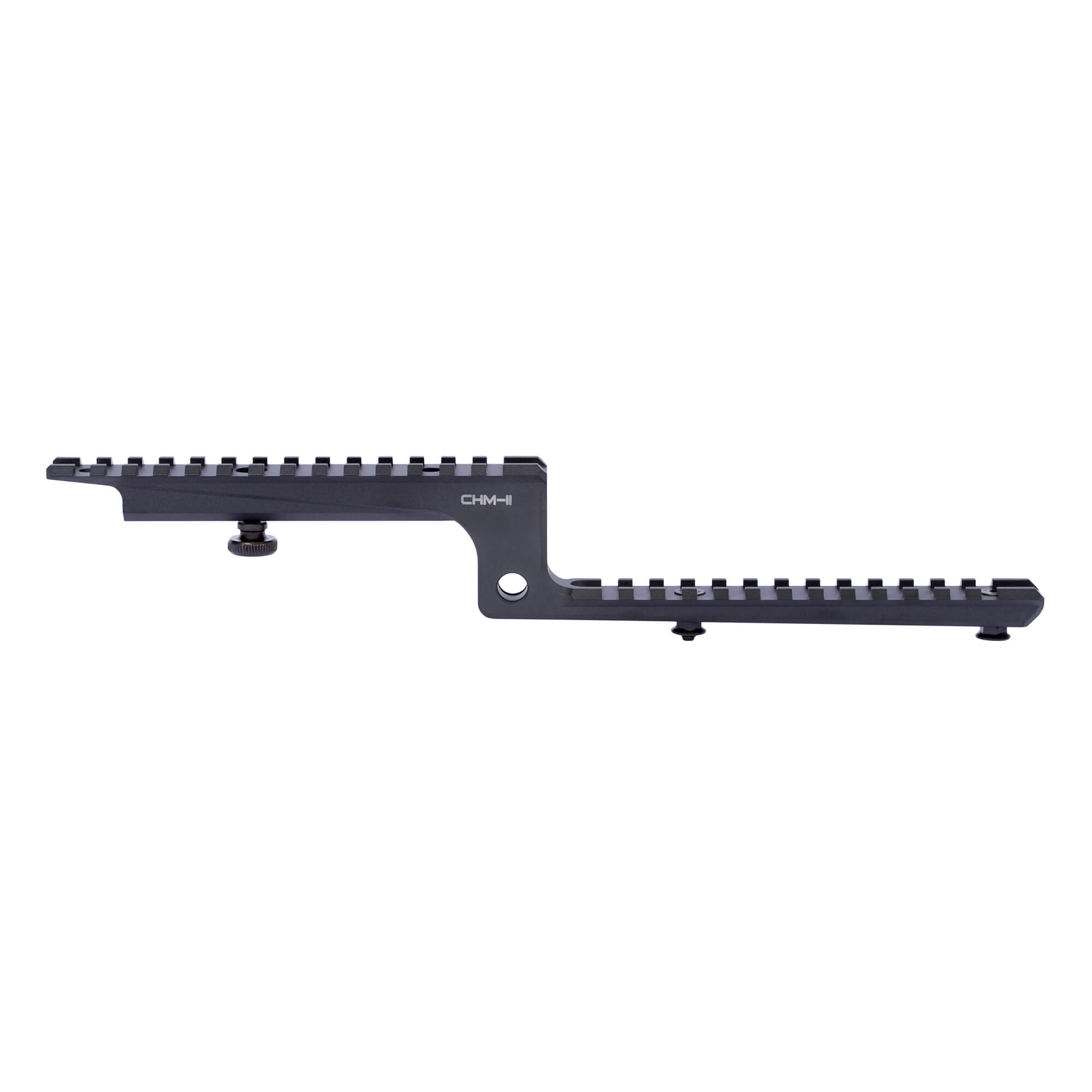

Mounting optics on a fixed carry-handle rifle usually means giving up your iron sights. The IMI Defense Z-Shape Carry Handle Mounting Rail solves that with a Z-shaped extension that raises a rail while leaving the iron-sight line clear.

It is machined from aircraft-grade aluminum and uses a self-locking thumbnut that seats into the carry handle’s opening for a secure, repeatable zero. The rail works with NATO STANAG, 1913 Picatinny, and Weaver mounts, so it fits a wide range of optics.

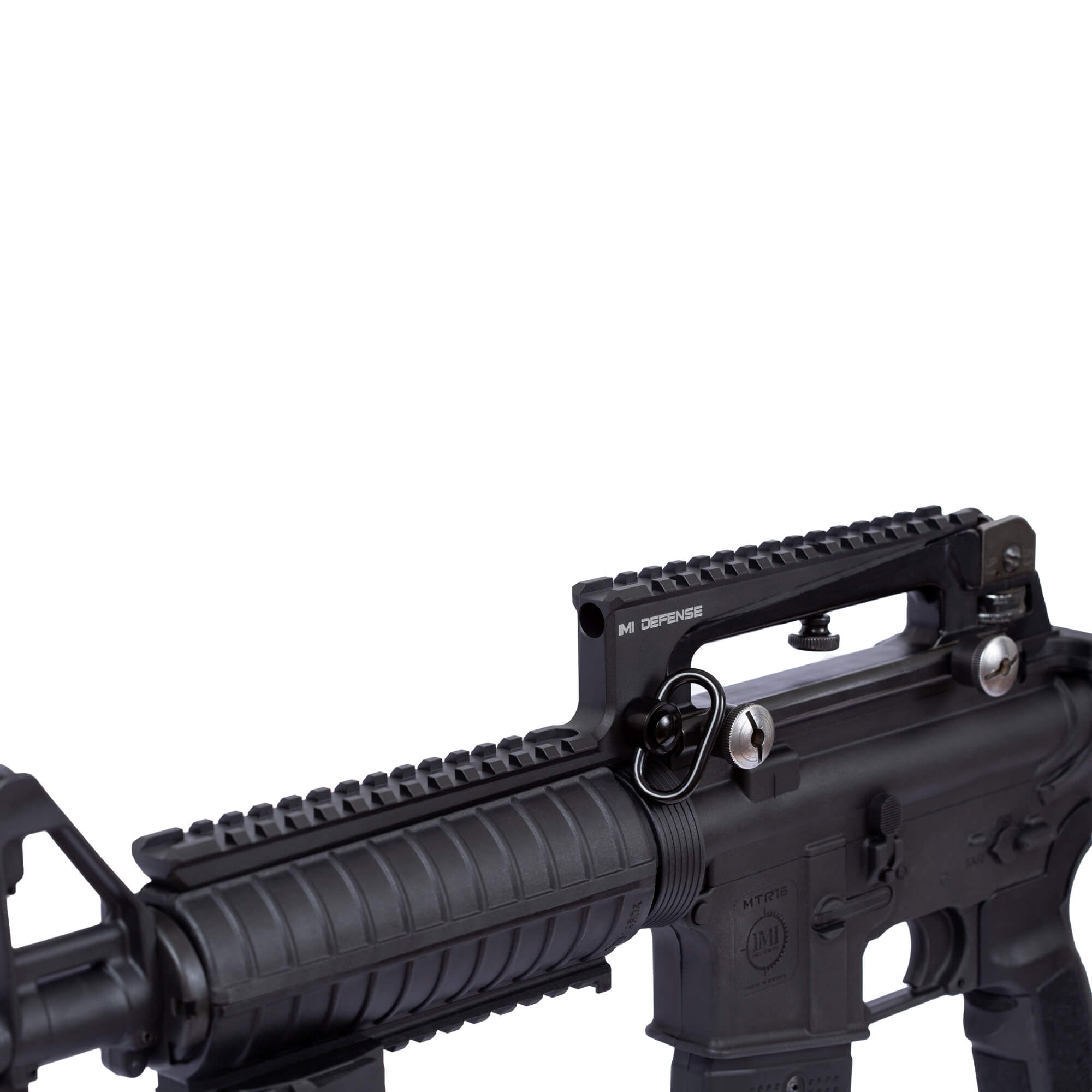

The Z extension rail mounts on a standard GI handguard with two screws and has a quick-detach (QD) slot on each side. It is designed for M16A1 and A2 carry-handle rifles and standard GI AR-15 / M4 carbine setups.

Key Features

Adds optics to a carry handle while keeping iron sights usable
Self-locking thumbnut for a secure, repeatable zero
Aircraft-grade aluminum
Fits NATO STANAG, 1913 Picatinny, and Weaver optics
QD slot on both sides
Mounts on a standard GI handguard with two screws

Specifications

Type: Z-shape carry handle rail mount
For: M16A1 / A2 and other carry-handle rifles, standard GI AR-15 / M4 carbine
Material: aircraft-grade aluminum
Locking: self-locking thumbnut for a repeatable zero
Optics compatibility: NATO STANAG, 1913 Picatinny, Weaver
Mounting: on a standard GI handguard with two screws
Quick-detach: QD slot on both sides
